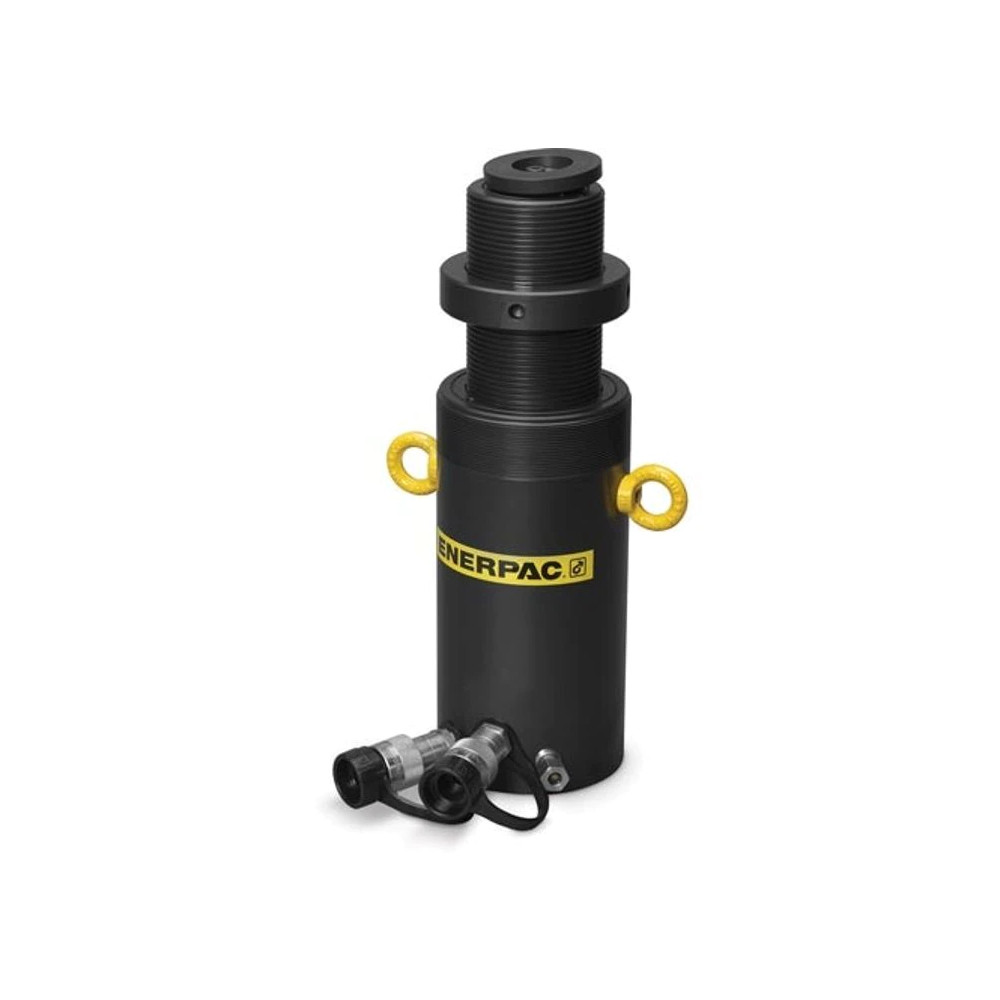

ENERPAC - 150 ton capacity, 200 mm stroke, double-acting, high tonnage, lock nut h
ENERPAC - 150 ton capacity, 200 mm stroke, double-acting, high tonnage, lock nut h
Code ODM | ENERPHCRL1508 |
Code ODM | ENERPHCRL1508 |
Merk | ENERPAC |
Referentie leverancier | HCRL1508 |
Eenheid | stuks |
Producttype | Hydraulische cilinder ( zwaar tonnage ) |
UNSPSC | 27121602 |
E-Class | 21110102 |
Beschikbaarheid |
Beschikbaarheid
|
Omschrijving |
Hydraulically controlled fast retraction Lock nut provides mechanical load holding for a safe work environment Designed to withstand up to 10% side-load of maximum capacity Integrated tilt saddle allows up to 5 degrees of misalignment Hardened surface resists side-loading and cyclic wear Weather protected, inside and out Replaceable bearings enclose the plunger external and internally for support Certified lifting eyes, base mounting holes and collar thread as standard Stop-ring to prevent plunger blow-out Low friction lock nut, spin easy, save time and effort The HCRL-Series Cylinders are available up to 1000-ton capacity and 24-inch stroke upon request. Contact Enerpac for more information. |
Documenten |
Beschikbaarheid
- Levertijd 6 werkdagen (indicatief). Indien beschikbaar bij producent (volgens algemene voorwaarden*)
Hydraulically controlled fast retraction Lock nut provides mechanical load holding for a safe work environment Designed to withstand up to 10% side-load of maximum capacity Integrated tilt saddle allows up to 5 degrees of misalignment Hardened surface resists side-loading and cyclic wear Weather protected, inside and out Replaceable bearings enclose the plunger external and internally for support Certified lifting eyes, base mounting holes and collar thread as standard Stop-ring to prevent plunger blow-out Low friction lock nut, spin easy, save time and effort The HCRL-Series Cylinders are available up to 1000-ton capacity and 24-inch stroke upon request. Contact Enerpac for more information.
- ✓ Toegang tot uw nettoprijzen
- ✓ Overzicht van actuele voorraad
- ✓ Krachtige zoekmotor
- ✓ Opvolging van uw bestellingen, facturen en verzendnota's
- ✓ 1% extra korting op online bestellingen bovenop uw nettoprijzen
Productinformatie
(Goed geïnformeerd)Omschrijving
(In detail)- Hydraulically controlled fast retraction
- Lock nut provides mechanical load holding for a safe work environment
- Designed to withstand up to 10% side-load of maximum capacity
- Integrated tilt saddle allows up to 5 degrees of misalignment
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
- Replaceable bearings enclose the plunger external and internally for support
- Certified lifting eyes, base mounting holes and collar thread as standard
- Stop-ring to prevent plunger blow-out
- Low friction lock nut, spin easy, save time and effort
- The HCRL-Series Cylinders are available up to 1000-ton capacity and 24-inch stroke upon request. Contact Enerpac for more information.
Specificaties
(Alles wat u moet weten)Producttype | Hydraulische cilinder ( zwaar tonnage ) |
Slaglengte | 200mm |
Capaciteit (ton) | 150t |
Capaciteit (kN) | 1501kN |
Producttype | Hydraulische cilinder ( zwaar tonnage ) |
Slaglengte | 200mm |
Capaciteit (ton) | 150t |
Capaciteit (kN) | 1501kN |
