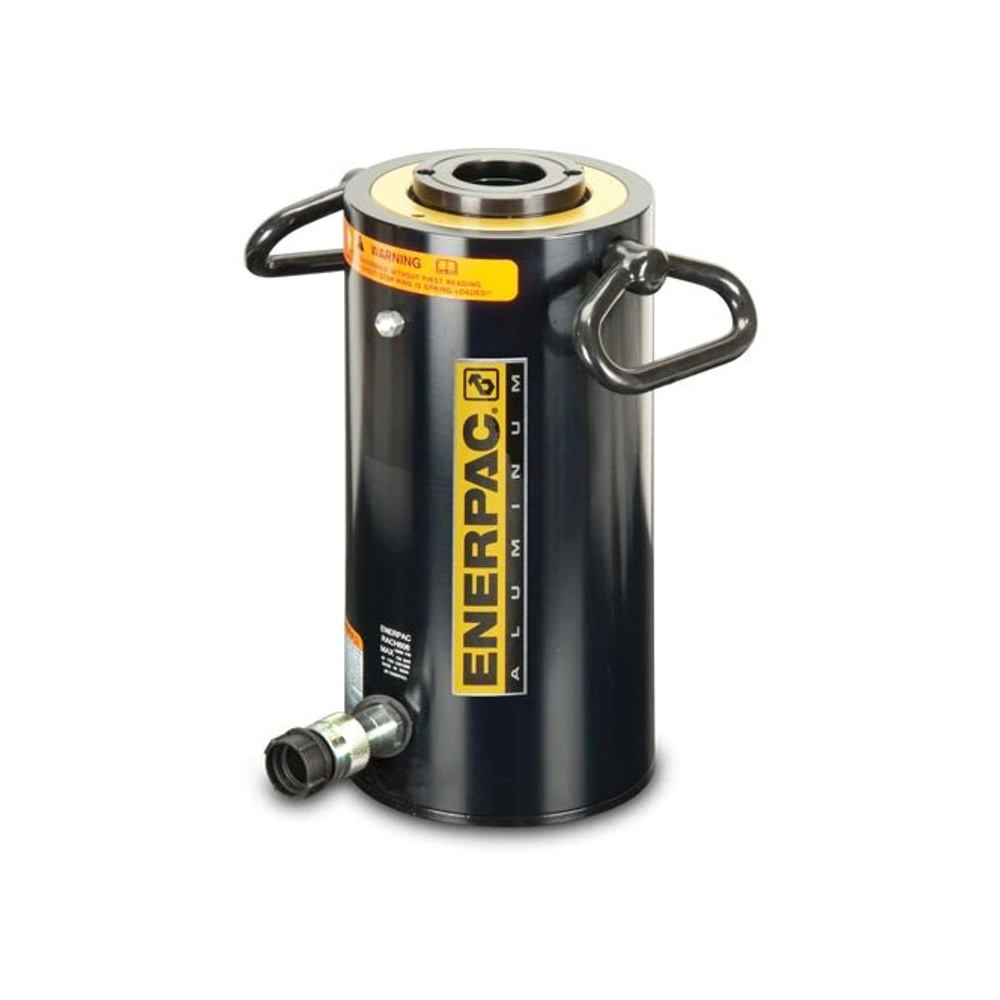

ENERPAC - Aluminum cylinder 100 t. rach1008
ENERPAC - Aluminum cylinder 100 t. rach1008
Code ODM | ENERPRACH1008 |
Code ODM | ENERPRACH1008 |
Merk | ENERPAC |
Referentie leverancier | RACH1008 |
Eenheid | stuks |
Producttype | Hydraulische cilinder ( holle piston ) |
UNSPSC | 27121602 |
E-Class | 21110102 |
Beschikbaarheid |
Beschikbaarheid
|
Omschrijving |
Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards |
Documenten |
Beschikbaarheid
- Levertijd 6 werkdagen (indicatief). Indien beschikbaar bij producent (volgens algemene voorwaarden*)
Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards
- ✓ Toegang tot uw nettoprijzen
- ✓ Overzicht van actuele voorraad
- ✓ Krachtige zoekmotor
- ✓ Opvolging van uw bestellingen, facturen en verzendnota's
- ✓ 1% extra korting op online bestellingen bovenop uw nettoprijzen
Productinformatie
(Goed geïnformeerd)Omschrijving
(In detail)- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specificaties
(Alles wat u moet weten)Producttype | Hydraulische cilinder ( holle piston ) |
Slaglengte | 200mm |
Capaciteit (ton) | 100t |
Capaciteit (kN) | 1157kN |
Producttype | Hydraulische cilinder ( holle piston ) |
Slaglengte | 200mm |
Capaciteit (ton) | 100t |
Capaciteit (kN) | 1157kN |
